ECT-KEMA GmbH
About us
ECT-KEMA GmbH is a special machine manufacturer for extrusion, moulding and handling technologies.
We specialise in the development of innovative high-performance extruders, piston extruders and pelletisers for shaping plastic masses and geometries of all kinds.
In our own technical centre and with the help of our ECT-KEMA laboratory extruders, we offer our customers worldwide the best support in the development of new products, formulations and geometries such as filigree honeycombs, "thin foils", tubes, columns, catalysts, insulators and also powder metallurgical products.
Sectors such as the chemical industry, recycling industry, electrical industry, environmental technology and many more utilise our services.
Many years of expertise, cooperation partnerships from industry and science as well as in-house process simulations are the basis for technological innovations and customised solutions according to the needs of our customers.
Address
Am Hoterberg 5
02829 Markersdorf
Germany
E-mail: info@ect-kema.de
Phone: +49 3581 878777-0
Internet: www.ect-kema.de
Contact person:
Products & Services
For complex moulding processes, ECT-KEMA offers everything from a single source.
Our portfolio:
High & medium pressure extruders for production and laboratory
Pelletisers for production and laboratory
Piston presses
Jiggering lathes for insulators
Feeding & dosing systems, box, round & circular screen feeders, dosing strainers
Material processing systems, drum mills, crushers, shredders, filter presses
Cutting & handling systems, robot solutions as well as transport and storage technologies
Test devices for the rheological analysis of stiff plastic masses
Customised shaping tools, pressure heads and dies for extruding various geometries and filigree structures
Quickplast PPG - The rapid tester for measuring and comparing body plasticity and flow behaviour
Precise Data with Quickplast PPG
During material preparation, it is often necessary to evaluate the mixing and kneading cycles of different processing systems in parallel. Test series must therefore be repeatable quickly and easily. Quickplast PPG has been specifically designed for this purpose.
You can test extremely small material quantities of just 0.05 liters cost-effectively while obtaining reliable and meaningful data. These fast and dependable test results feed directly into the development process, ensuring high product quality and economically efficient production.The Quickplast PPG is available as a plug-and-play solution with an integrated worktable and control unit, measuring 0.85 × 0.75 × 2.00 m. If required, the rapid mass testing unit can also be integrated into an existing table system, providing immediate access to key process data for product optimization.
Precise Measurement of Key Parameters
• Determination of flow pressure without wall friction
• Determination of the yield point
Defining Quality Assurance Parameters
• Specification of minimum and maximum values
• Comparative measurements
Analysis of Rheological Properties
• Structural viscosity
• Shear thickening (dilatancy)
• Rheopexy
• Thixotropy

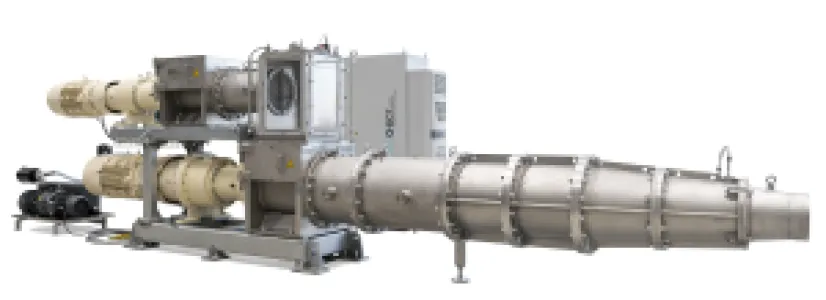

ECT-KEMA Vacuum Extruder - PVP Series
Extrusion of Solid and Hollow Billets
PVP series machines from ECT-KEMA GmbH are used worldwide for the extrusion of ceramic billets. In both concept and engineering detail, these combined vacuum extrusion units set benchmarks in terms of energy-efficient drive systems, high-performance materials for extrusion channels and auxiliary equipment, precise monitoring of operating parameters, as well as excellent accessibility and ease of cleaning.
Each system consists of the extrusion unit and a perfectly matched pre-compression unit, connected by a spacious vacuum chamber equipped with large inspection windows.
ECT-KEMA vacuum extruders are available with cylinder diameters of 200, 250, 350, 500, 750, and 950 mm, providing the ideal solution for a wide range of production capacities.
ECT-KEMA AKD Series - Jiggering lathes
Turning of Ceramic Insulators
In addition to extruders for the production of solid and hollow ceramic billets, ECT-KEMA develops precision turning machines for shaping ceramic insulators with a wide variety of shed geometries.
These machines are particularly suited for the production of insulators used in HVDC (High-Voltage Direct Current) transmission applications.
With machining diameters from 200 to 500 mm and workpiece heights from 500 to 3,000 mm, the AKD series offers exceptional flexibility for processing a broad range of billet sizes.
Two billet clamping stations and a convenient automatic workpiece changer ensure fast, efficient, and uninterrupted production. Modern high-dynamic servo drives provide optimum power transmission during the turning process, while precision low-backlash guideways and ball screws guarantee outstanding machining accuracy.
Fast software adaptation for changing shed geometries enables maximum flexibility in insulator design and production.
ECT-KEMA Pelletizers
Pellets in the Desired Format – Efficient and Versatile
ECT-KEMA GmbH offers a comprehensive range of screw and piston extruders for the production of pellets in a wide variety of geometries. The product portfolio covers cylinder diameters from 20 to 650 mm, providing solutions for both laboratory applications and industrial-scale production.
In a dedicated development process, new extrusion tools are continuously designed and manufactured to meet individual customer requirements and optimize the extrusion process.
Leading manufacturers worldwide from diverse industries—including the chemical, metal, recycling, ceramic, and environmental sectors—rely on ECT-KEMA technology for the pelletizing of a wide range of plastic and plastic-forming materials in both research and production.

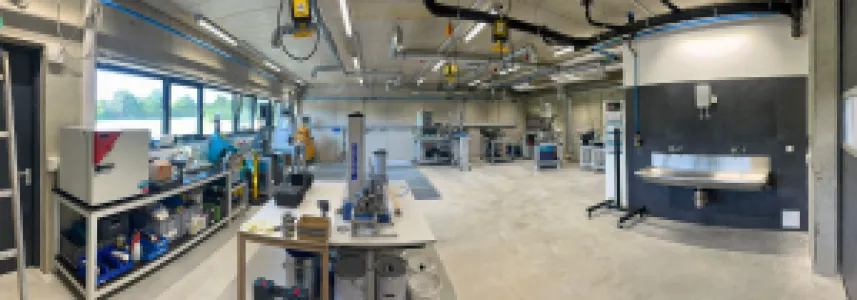

ECT-KEMA Laboratory Services
From the Laboratory to Production
Our modern ECT-KEMA extrusion laboratory offers a wide range of possibilities for carrying out the necessary trials to optimize extrusion processes and extrusion masses. Take advantage of this potential to achieve optimal results. We offer you targeted, practice-oriented tests.
Raw Material and Mass Testing
• Testing of raw materials and mass formulations that can be processed with ECT-KEMA machines.
Feasibility Tests
• Trialing new products and processes in the fields of structural, fine, and technical ceramics as well as the chemical industry.
• Optimization of mass recipes and kneading curve analyses.
Determination of Rheological Data and Simulation
• Rheological characterization of plastic masses using the laboratory measuring extruder, as well as extruder design based on an Extruder Simulation Model (ESM).
Tests
• Mixing, extrusion, and drying tests on a semi-industrial scale in the pilot plant.
• Investigation and optimization of the design of your extrusion machines.
Mass and Raw Material Analyses
• Analyses of raw materials and production masses, e.g. measurement of moisture content, plasticity, and grain size.
Further Investigations
• Further analyses in cooperation with renowned R&D institutes and universities.
